Corrosion - Resistant Plain Stainless Steel Wire Cloth With 1 - 635 Mesh

Brand Name : YQ

Model Number : YQ-D31

Certification : ISO 9001

Place of Origin : Hebei, China.

MOQ : 30 rolls

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500000 rolls per month

Delivery Time : 5-15 days

Packaging Details : 1.in roll,water proof paper in side and outside with woven bag, 2.wooden case 3.pallet 4.The package able to according to customer's requirment.

Material : SS304,304L,316,316L

Use : screen, filter.

Technique : woven

Weave Type : Plain,twill and dutch

Factory : yes

Sample : free

Mesh : 1*1-635*635mesh/inch

Wire Diameter : 0.1-5MM

Contact Now

Corrosion-resistant Plain Stainless Steel Wire Cloth With 1 - 635 Mesh

1. Description of Stainless Steel Security Screen:

Woven stainless steel wire mesh is a woven textile made of metallic material flexible enough to be woven into a variety of shapes and sizes. All materials are woven from wire as thick as 1.6 diameter to 0.016 diameter - finer than a human hair.Stainless steel is the most popular woven wire mesh where strength and durability are of prime importance, with all standard sizes available in grade 304 and many in grade 316 where greater corrosion resistance is required. Insect mesh is available in aluminium, stainless or fibreglass.

2. Specification:

Material
SS wire 201, 304, 304L, 316, 316L, 431, 321 etc.
Wire diameter
0.02-2.03mm

Mesh

1-635 mesh
Woven style plain weave,twill weave,dutch weave

Packing

1.in roll,water proof paper in side and outside with woven bag, 2.wooden case 3.pallet 4.The package able to according to customer's requirment.
Charaacteristics

Wear-resistant, high strength and long service life,

unity-structure, not curly, easy to use, acid-resistant ,

alkali-resistant, corrosion-resistant,

heat-resistant

Application

Woven stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

Mesh/inch Wire diameter Aperture Open area(%) Weight(KG/m2)
inch mm inch mm
1 0.08 2.03 0.92 23.37 92 2
2 0.063 1.6 0.437 11.1 87.4 2.5
3 0.054 1.37 0.279 7.09 83.8 2.7
4 0.047 1.2 0.203 5.16 81.2 2.7
5 0.041 1.04 0.159 4.01 79.5 2.6
10 0.024 0.6 0.076 19.4 74.9 1.8
12 0.02 0.5 0.064 1.62 75.9 1.5
14 0.02 0.5 0.052 1.314 71.9 1.75
16 0.018 0.45 0.045 1.137 71.2 1.6
18 0.016 0.4 0.04 1.01 69.4 1.4
20 0.009 0.24 0.04 1.03 76 0.57
20 0.012 0.3 0.038 0.97 72.2 0.9
30 0.012 0.3 0.0215 0.547 63.9 1.35
30 0.0094 0.24 0.0243 0.62 72.1 0.84
40 0.0098 0.25 0.015 0.385 36.74 1.25
50 0.0079 0.2 0.0121 0.308 36.7 1
60 0.0047 0.12 0.012 0.303 71.6 0.42
60 0.0059 0.15 0.0107 0.273 64.5 0.65
80 0.0047 0.12 0.0078 0.198 38.7 0.58
80 0.0055 0.14 0.0069 0.177 45.5 0.76
100 0.0039 0.1 0.006 0.154 59.8 0.5
100 0.0043 0.11 0.0056 0.144 55.1 0.6
120 0.0027 0.07 0.0056 0.142 67.7 0.29
120 0.0031 0.08 0.0052 0.132 38.7 0.38
150 0.0024 0.06 0.0043 0.109 41.6 0.27
165 0.0018 0.045 0.0043 0.109 50 0.167
180 0.0019 0.05 0.0036 0.091 64.5 0.22
180 0.0023 0.06 0.0032 0.081 57.4 0.32
200 0.0019 0.05 0.003 0.077 60.6 0.24
200 0.0024 0.06 0.0026 0.067 52.7 0.35
250 0.0012 0.03 0.0028 0.072 49.8 0.11
250 0.0016 0.04 0.0024 0.062 36.9 0.2
270 0.0014 0.035 0.0023 0.059 60 0.16
270 0.0016 0.04 0.0021 0.054 57.4 0.21
300 0.0012 0.03 0.0022 0.055 57 0.13
325 0.0014 0.035 0.0017 0.043 55.3 0.2
400 0.0012 0.03 0.0013 0.034 52.7 0.18
500 0.0009 0.025 0.001 0.025 50.7 0.15
635 0.0007 0.02 0.0008 0.02 55 0.1

Weave Type:

Corrosion - Resistant Plain Stainless Steel Wire Cloth With 1 - 635 Mesh

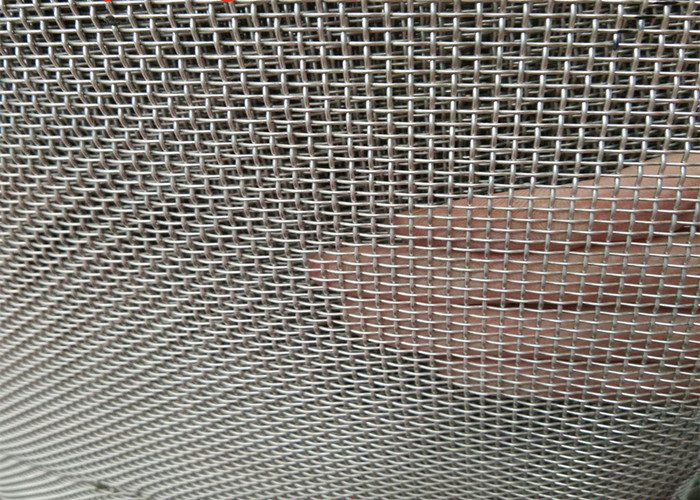

Detail Picture:

Corrosion - Resistant Plain Stainless Steel Wire Cloth With 1 - 635 Mesh

Corrosion - Resistant Plain Stainless Steel Wire Cloth With 1 - 635 Mesh
